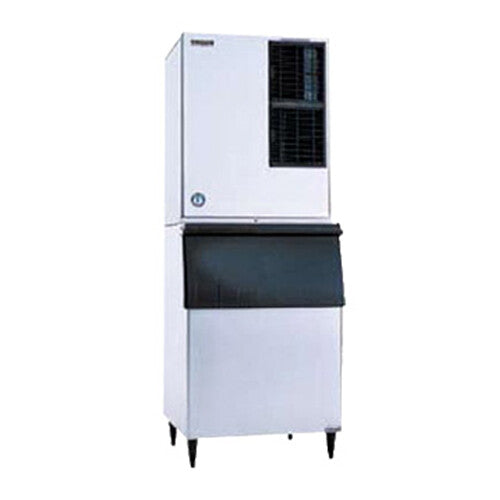

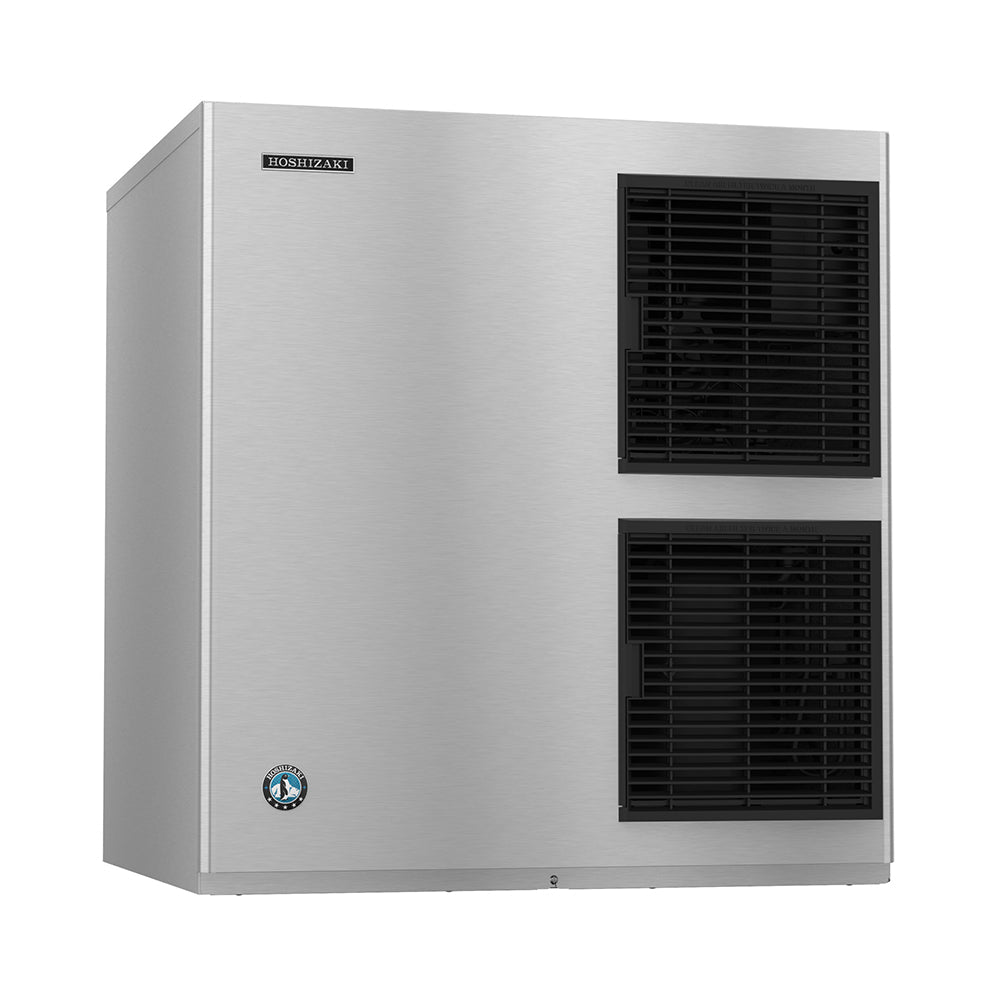

The Hoshizaki Modular Crescent Ice Machine - the KM-470AJ-S is a powerful ice machine designed to provide you with up to 480kg of fresh, clear crescent-shaped ice every day, making it an ideal choice for high-volume commercial operations such as restaurants, hotels, and bars.
The KM series efficient CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
The KM-470AJ-S features a stainless steel exterior and a durable, easy-to-clean design that ensures years of reliable performance. Its advanced control system allows for easy operation and maintenance, while the air-cooled condenser ensures efficient ice production without the need for a separate water cooling system.
This modular ice machine is compatible with a wide range of Hoshizaki ice storage bins and dispensers, giving you the flexibility to customize your setup to suit your specific needs. And with its compact size and convenient built-in handles, the KM-470AJ-S is easy to install and move as needed.
But what really sets the Hoshizaki Modular Crescent Ice Machine apart is its unique crescent-shaped ice, which is designed to provide maximum cooling with minimum dilution. This means your customers can enjoy their drinks at their desired temperature without worrying about the ice melting too quickly and watering down their drinks.
Overall, the Hoshizaki Modular Crescent Ice Machine - KM-470AJ-S is a high-quality, reliable, and efficient ice machine that delivers excellent performance and value for your business. Whether you're looking to upgrade your existing ice machine or outfitting a new commercial kitchen, the KM-470AJ-S is an excellent choice.
Product Features
- Individual premium crescent cube.
- Protected by HoshiGuard Antimicrobial Agent.
- CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
- EverCheck Control board with audible alarm and diagnostic features, designed to assist services technicians in diagnosing problems.
- Durable stainless steel exterior.
- Easily removable & cleanable air filters on front panel.
- Ice storage bin, top kit and water filter sold separately.
Product Specifications
- Recommended Storage Bins B-501SA, B-801SA, B-1300SS, B-1500SS
- Freeze Cycle Time: Approx. 24 Min (At. 21°C Air; 15°C Water)
- Ice Production/cycle: Approx. 9.7kg/960pcs
- Dimensions: 762mm (W) x 695mm (D) x 825mm (H)
- Cooling: Air
- Weight Net/Gross (kg): 122/142
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 15 Amp Plug
- Amperage Running: 11.2A
- Refrigerant Charge: R404A
- Electrical consumption: 1,850W (AT. 32°C; WT 21°C)
- Water Consumption: Approx. 1.02m3/d (AT. 21°C; WT 15°C)
Production Capacity / 24hrs
- Approx. 480kg @ 21°C Air temp; 15°C Water
- Approx. 380kg @ 32°C Air temp; 21°C Water
Operating Conditions
- Ambient Temp.: 7-38°C
- Water Supply Temp.: 7-32°C
- Water Supply Pressure: 0.07-0.078MPa (0.7-7.8bar)
- Voltage Range: 198-254V
Warranty
- 3 years Parts and Labour on the entire unit
- 5 years (parts and labour) on evaporator
- 5 years (parts only) compressor and air cooled condenser coil
- Get an additional 6 months when registering an Ice Machine
